The Pramac GSW110P model produces three-phase power using the world-leading Perkins Diesel engine. Renowned for their durability and reliability in all matter of environments, these units are ideal to use at commercial buildings supply or industrial equipment operations.
GSW110P
The Pramac GSW110P model produces three-phase power using the world-leading Perkins Diesel engine. Renowned for their durability and reliability in all matter of environments, these units are ideal to use at commercial buildings supply or industrial equipment operations. They can also be used when large events need power requirements during an outage which will happen sometimes with backup/standby purposes.
For a long time, Generac power systems have been known to be the most reliable and durable out there. These units are perfect for any type of commercial building supply or industrial equipment operation because they can handle large-scale events with ease!
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW110P
Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 114.67 kVA
Standby power LTP: 91.74 kW
Prime power PRP: 103.84 kVA
Prime power PRP: 83.07 kW
Dry weight (kg): 1,400
Dimensions (L x W x H / mm): 2400 x 1000 x 1530
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW110P catalogue (attached).
Engine specifications for GSW110P
Type of engine: Mecc Alte / ECP 32-3L/4 B
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Efficiency at @ 75%: 92.5%
Class: H
IP Protection: 23
*Specifications are taken from the GSW110P catalogue (attached).
GSW110P includes:
Base frame made of welder steel profile, complete with:
- Anti-vibration mounting properly sized
- Visual fuel level indicator
Plastic fuel tank complete with:
- Filler neck
- Air breather (vent pipe)
- external refueling ability
- Oil draining facilities

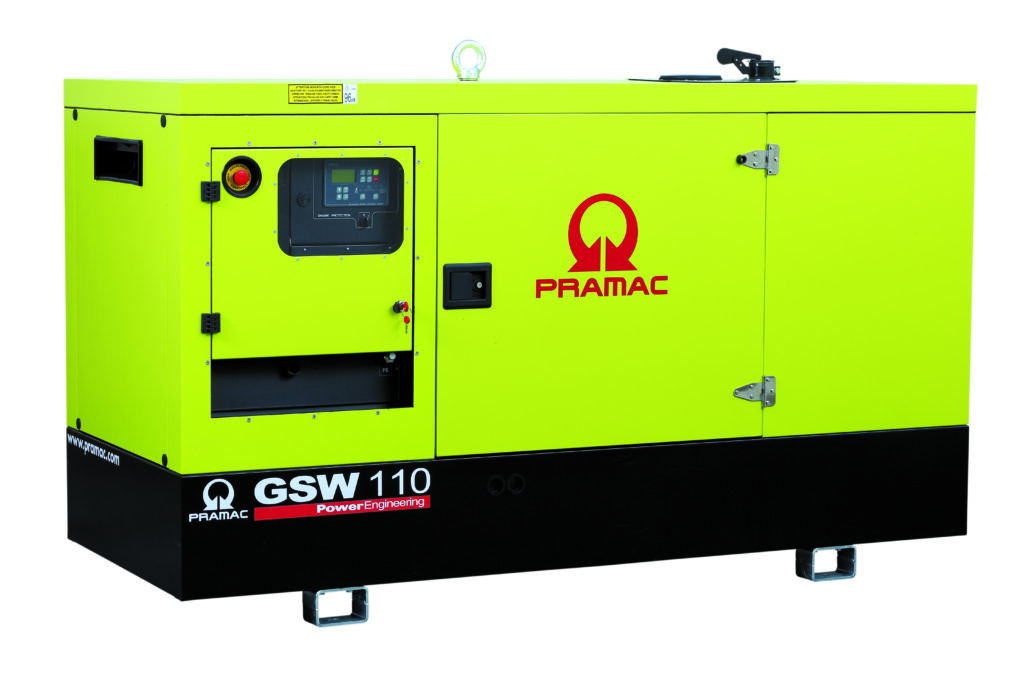

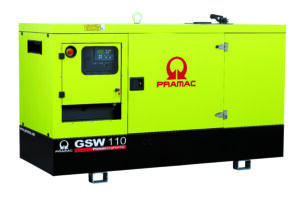

Canopy
- Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
- Simple handling operationswith central lifting eye
- Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.
