In general, the Pramac GSW165P model uses three-phase power utilising the world-leading Perkins Diesel engine. The GSW series are second to none when it comes to stationary generator power for your business.

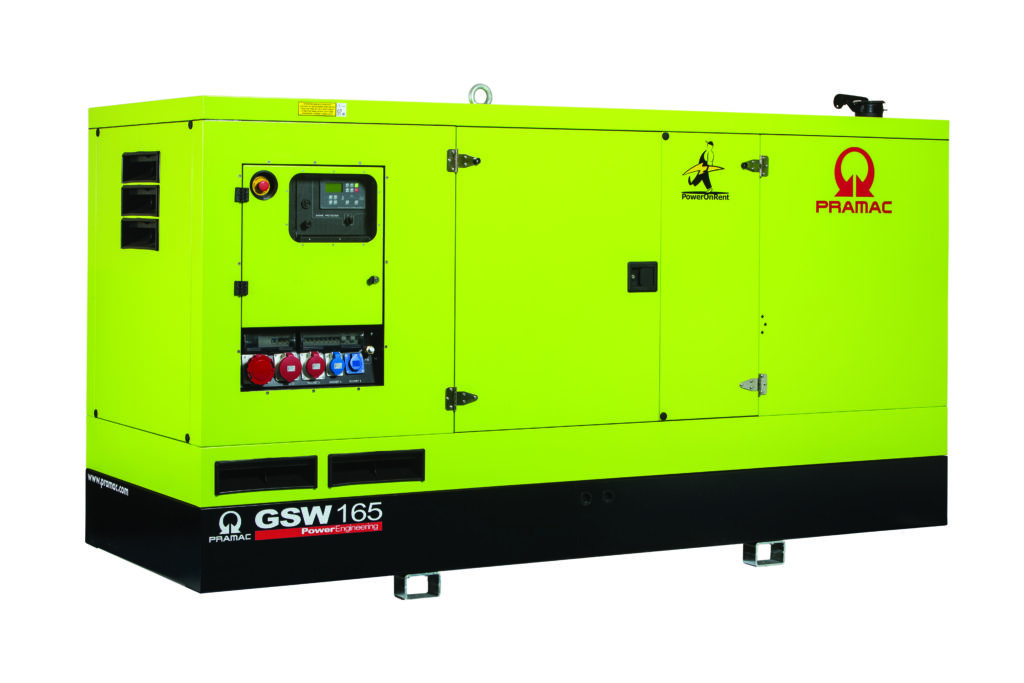

GSW165P
The Pramac GSW165P model uses three-phase power utilising the world-leading Perkins Diesel engine. In general, the Pramac GSW series are second to none when it comes to stationary generator power for your business.
For a long time, Generac power systems have been known to be the most reliable and durable out there. These units are perfect for any type of commercial building supply or industrial equipment operation because they can handle large-scale events with ease!
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW165P
Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 164.00 kVA
Standby power LTP: 131.20 kW
Prime power PRP: 152.62 kVA
Prime power PRP: 122.10 kW
Dry weight (kg): 2240
Dimensions (L x W x H / mm): 3400 x 1250 x 1770
Fuel tank capacity: 360L
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW165P catalogue (attached).
Alternator specifications for GSW165P
Type of engine: Mecc Alte / ECP 34-2L
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Efficiency at @ 75%: 93.5%
Class: H
IP Protection: 23
Engine specifications for GSW165P
Type of engine: Perkins / 1106A-70TAG2
[50Hz] Exhaust emission level: Non-emission certified
Engine cooling system: Water
No. Cylinders: 6
Displacement: 7000 cm3
Aspiration: Turbocharged
Speed Governor: Mechanical
Prime Gross Power (PRP): 136kW
Max gross power (LTP): 149.1kW
Oil capacity: 14.9 L
Coolant capacity: 21 L
Fuel: Diesel
Specific fuel consumption @ 75% PRP: 199.7 g/kWh
Specific fuel consumption @ PRP: 203.3 g/kWh
Starting system: Electric
Starting engine capability: 4.2 kW
Electric circuit: 12 V
*Specifications are taken from the GSW165P catalogue (attached).
GSW165P includes:
Base frame made of welder steel profile, complete with:
- Anti-vibration mounting properly sized
- Visual fuel level indicator
Plastic fuel tank complete with:
- Filler neck
- Air breather (vent pipe)
- external refueling ability
- Oil draining facilities
Canopy
- Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
- Simple handling operationswith central lifting eye
- Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.
