The Pramac GSW220P model uses three-phase power utilising the world-leading Perkins Diesel engine. The Pramac GSW series is a great choice for any business that needs to power its operations. The quality and dependability of these generators make them second-to-none when it comes down to stationary generator use!

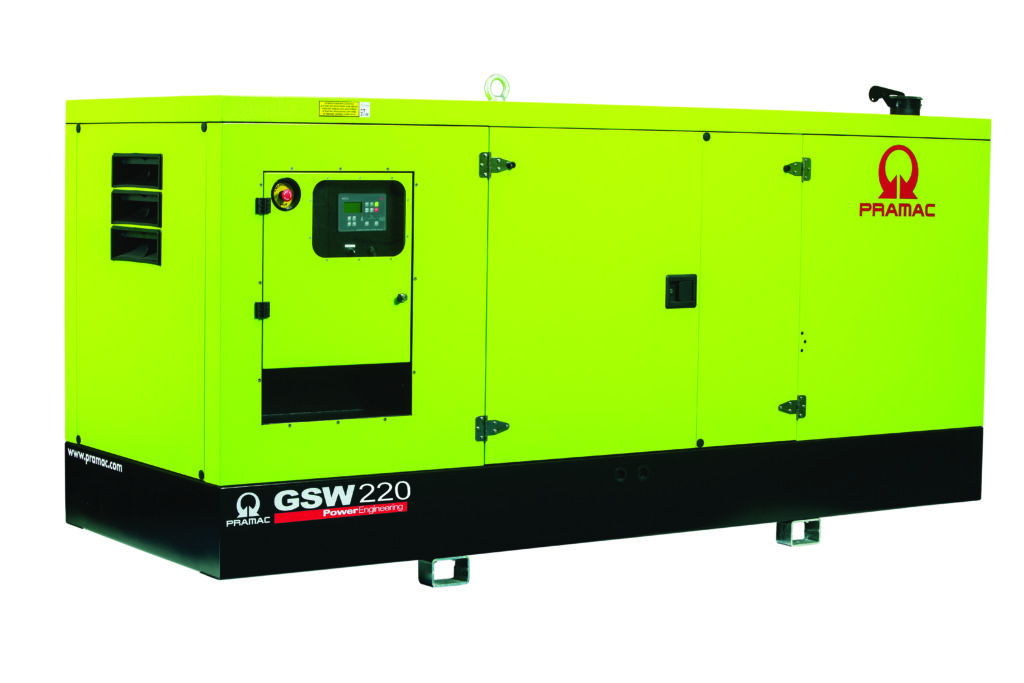

GSW220P
The Pramac GSW220P model uses three-phase power utilising the world-leading Perkins Diesel engine. The Pramac GSW series is a great choice for any business that needs to power its operations. The quality and dependability of these generators make them second-to-none when it comes down to stationary generator use!
It’s not just about being powerful, Generac power systems are known for their durability! These units can withstand large-scale events with ease and will provide you with the reliability that your business needs in tough times.
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW220P
Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 220.00 kVA
Standby power LTP: 176.00 kW
Prime power PRP: 201.51 kVA
Prime power PRP: 161.21 kW
Dry weight (kg): 2043
Dimensions (L x W x H / mm): 3400 x 1250 x 1770
Fuel tank capacity: 360L
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW220P catalogue (attached).
Alternator specifications for GSW220P
Type of engine: Mecc Alte / ECO38-2s
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Efficiency at @ 75%: 92.9%
Class: H
IP Protection: 23
Engine specifications for GSW220P
Type of engine: Perkins / 1106A-70TAG4
[50Hz] Exhaust emission level: Non-emission certified
Engine cooling system: Water
No. Cylinders: 6
Displacement: 7000 cm3
Aspiration: Turbocharged
Speed Governor: Mechanical
Prime Gross Power (PRP): 178.9 kW
Max gross power (LTP): 196.3 kW
Oil capacity: 14.9 L
Coolant capacity: 21 L
Fuel: Diesel
Specific fuel consumption @ 75% PRP: 215 g/kWh
Specific fuel consumption @ PRP: 213 g/kWh
Starting system: Electric
Starting engine capability: 4.2 kW
Electric circuit: 12 V
*Specifications are taken from the GSW220P catalogue (attached).
GSW220P includes:
Base frame made of welder steel profile, complete with:
- Anti-vibration mounting properly sized
- Visual fuel level indicator
Plastic fuel tank complete with:
- Filler neck
- Air breather (vent pipe)
- external refueling ability
- Oil draining facilities
Canopy
- Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
- Simple handling operationswith central lifting eye
- Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.
Our team at PowerGen provide you with the power to generate solutions for businesses. Call us today on 1300 885 789 to discuss this option for your business.
