The Pramac GSW225V model has a robust mechanical structure that permits easy access to the connections and components during routine maintenance check-ups. The digital DSR controls the range of voltage, avoiding any possible trouble that can be made by unskilled personnel.

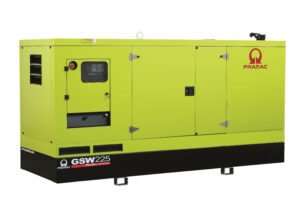

GSW225V
The Pramac GSW225V model is a great choice for any business that needs to power its operations. The quality and dependability of these generators make them second-to-none when it comes down to stationary generator use!
The Pramac GSW225V model has a robust mechanical structure that permits easy access to the connections and components during routine maintenance check-ups. The digital DSR controls the range of voltage, avoiding any possible trouble that can be made by unskilled personnel. The voltage accuracy is ±1% in static condition with any power factor and with speed variation between 5% and +30% with reference to the rated speed.
It’s not just about being powerful, Generac power systems are known for their durability! These units can withstand large-scale events with ease and will provide you with the reliability that your business needs in tough times.
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW225V
Frequency: 50Hz
Voltage: 230V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 220.00 kVA
Standby power LTP: 176.00 kW
Prime power PRP: 200.46 kVA
Prime power PRP: 160.37 kW
Dry weight (kg): 2540
Dimensions (L x W x H / mm): 3400 x 1250 x 1980
Fuel tank capacity: 350L
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW225V catalogue (attached).
Alternator specifications for GSW225V
Type of engine: Mecc Alte / ECO38-2SN/4
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Efficiency at @ 75%: 92.9%
Class: H
IP Protection: 23
Engine specifications for GSW225V
Type of engine: Volvo / TAD753GE
[50Hz] Exhaust emission level: Stage IIIA
Engine cooling system: Water
No. Cylinders: 6
Displacement: 7150 cm3
Aspiration: Turbocharged intercooled
Speed Governor: Electronic
Prime Gross Power (PRP): 184 kW
Max gross power (LTP): 202 kW
Oil capacity: 34 L
Coolant capacity: 23.1 L
Fuel: Diesel
Specific fuel consumption @ 75% PRP: 213 g/kWh
Specific fuel consumption @ PRP: 205 g/kWh
Starting system: Electric
Starting engine capability: 5 kW
Electric circuit: 24 V
*Specifications are taken from the GSW225V catalogue (attached).
GSW225V includes:
Standards
The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3
Engine and block
• Optimized cast iron cylinder block with the optimum distribution of forces
• Keystone top compression rings for long service life
• Replaceable valve guides and valve seats
Fuel system
• Common rail
• Engine mounted fuel pre-filter with water separator
• Fine fuel filter of cartridge insert type
• Gear-driven fuel feed pump
Lubrication system
• Rotary displacement oil pump driven by the crankshaft
• Deep front oil sump, Oil filler on top, Oil dipstick, short in front
• Integrated full flow oil cooler, side-mounted
Cooling system
• Belt-driven, maintenance-free coolant pump with a high degree of efficiency
• Efficient cooling with accurate coolant control through a water distribution duct in the cylinder block
• Reliable thermostat with minimum pressure drop Intake and exhaust system
• Two-stage air filter, with cyclone
