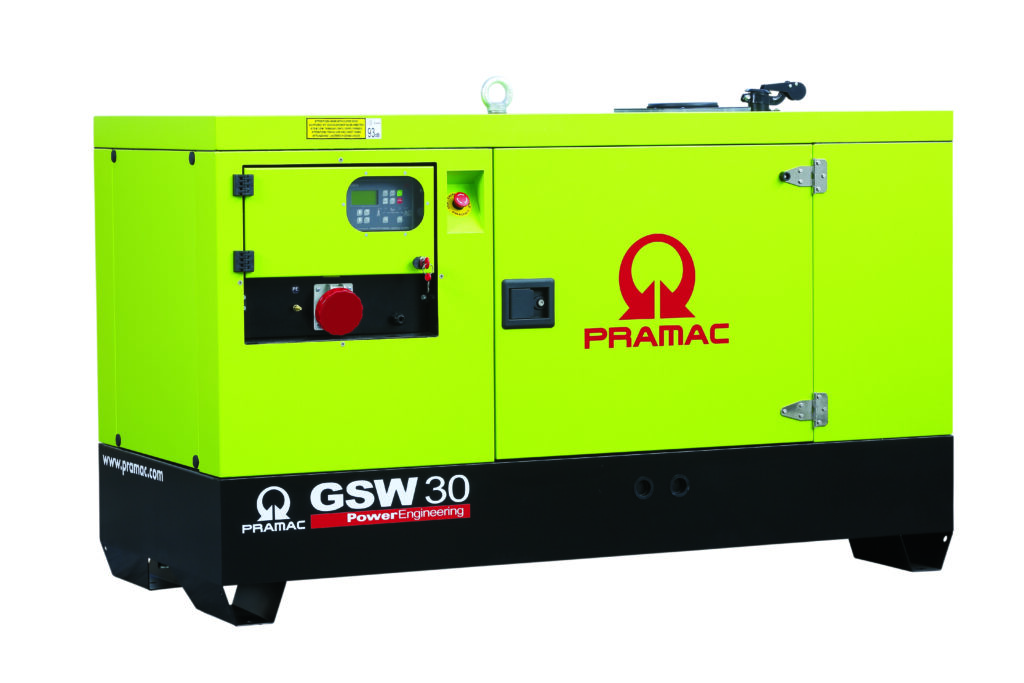

The Pramac GSW30P Three Phase Perkins Diesel Generator delivers world-class industrial backup power production. GSW30P comes with a strong Italian designed Mecc Alte Alternator, digital automatic control panel, and soundproofed zinced steel full weatherproof enclosure.
GSW30P
The Pramac GSW30P Three Phase Perkins Diesel Generator delivers world-class industrial backup power production. GSW30P comes with a strong Italian designed Mecc Alte Alternator, digital automatic control panel, and soundproofed zinced steel full weatherproof enclosure.
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW30P
Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 32.50 kVA
Standby power LTP: 26.00 kW
Prime power PRP: 30.50 kVA
Prime power PRP: 24.40 kW
Dry weight (kg): 715
Dimensions (L x W x H / mm): 2000 x 920 x 1310
Fuel tank capacity: 68 L
For installation specs and data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW30P catalogue (attached).
Engine specifications for GSW30P
Type of engine: Mecc Alte / ECP 28-VL/4
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Fuel: Diesel
Efficiency at @ 75%: 88.5%
Class: H
IP Protection: 23
*Specifications are taken from the GSW30P catalogue (attached).
Current data for GSW30P
Battery capacity: 70Ah
Engine specifications: Perkins / Model 1103A-33G
[50Hz] Exhaust emission level: Non Emission Certified
Engine cooling system: Water
Nr. of cylinder and disposition: 3 in line
Aspiration: Natural
Speed governor: Mechanical
Prime gross power PRP: kW 28.2
Maximum gross power LTP: kW 31
Oil capacity: 8.3 L
Lube oil consumption @ PRP (max) %: 0.15
Coolant capacity: 10.2 L
Fuel: Diesel
Specific fuel consumption @ 75% PRP g/kWh: 214.5
Specific fuel consumption @ PRP g/kWh: 211.5
Starting system: Electric
Starting engine capability kW: 3
Electric circuit: 12 V
GSW30P includes:
Base frame made of welder steel profile, complete with:
- Anti-vibration mounting properly sized
- intergrated support legs
Plastic fuel tank complete with:
- Filler neck
- Air breather (vent pipe)
- external refueling ability
- Oil draining facilities
Canopy
- Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
- Simple handling operationswith central lifting eye
- Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.
Engine complete with
- Battery
- Liquids (no fuel)
