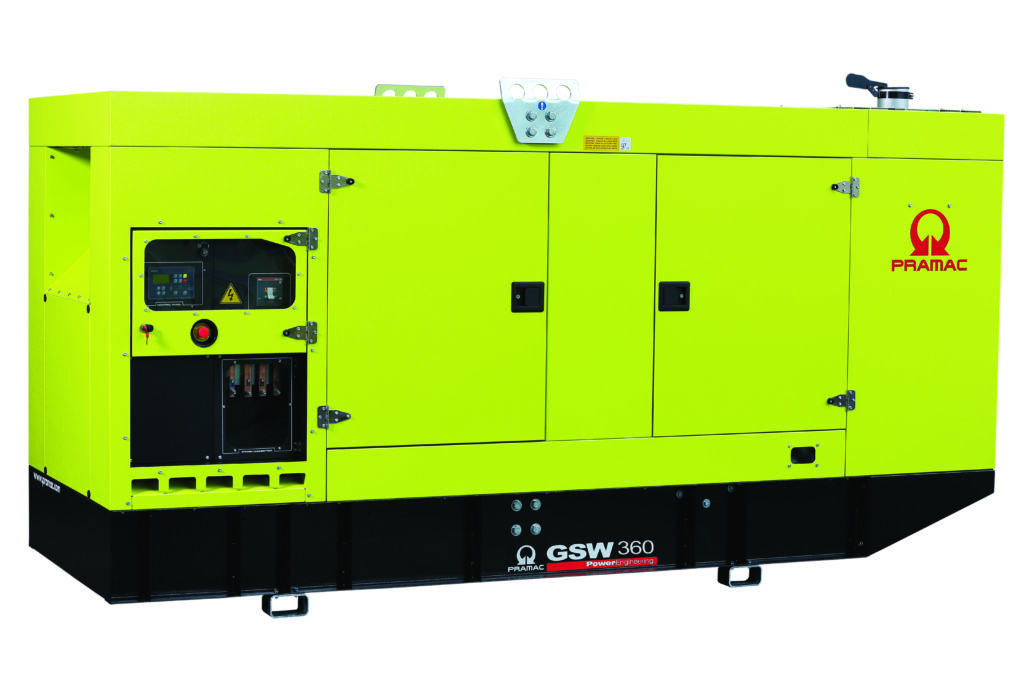

The robust mechanical structure of the Pramac GSW360V model permits easy access to the connections and components during routine maintenance check-ups. The Pramac GSW360V is mounted on a solid welded steel base frame with anti-vibration mountings, the unit can also come in an enclosure suitable for outdoor use. GSW360V model is a great choice for any business that needs to power its operations.
GSW360V
The robust mechanical structure of the Pramac GSW360V model permits easy access to the connections and components during routine maintenance check-ups. The Pramac GSW360V is mounted on a solid welded steel base frame with anti-vibration mountings, the unit can also come in an enclosure suitable for outdoor use. GSW360V model is a great choice for any business that needs to power its operations.
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW360V
Frequency: 50Hz
Voltage: 230V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 357.64 kVA
Standby power LTP: 286.11 kW
Prime power PRP: 326.08 kVA
Prime power PRP: 260.86 kW
Dry weight (kg): 3870
Dimensions (L x W x H / mm): 3951 x 1438 x 2085
Fuel tank capacity: 636 L
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW360V catalogue (attached).
Alternator specifications for GSW360V
Type of engine: Mecc Alte / ECO38-3LN/4
Poles: 4
Type: brushless
Standard AVR: DSR
Voltage tolerance: 1%
Efficiency at @ 75%: 93.7%
Class: H
IP Protection: 23
Engine specifications for GSW360V
Type of engine: Volvo / TAD1351GE
[50Hz] Exhaust emission level: Stage IIIA
Engine cooling system: Water
No. Cylinders: 6
Displacement: 12780 cm3
Aspiration: Turbocharged intercooled
Speed Governor: Electronic
Prime Gross Power (PRP): 286 kW
Max gross power (LTP): 313 kW
Oil capacity: 30 L
Coolant capacity: 23.8 L
Fuel: Diesel
Specific fuel consumption @ 75% PRP: 204 g/kWh
Specific fuel consumption @ PRP: 200 g/kWh
Starting system: Electric
Starting engine capability: 7 kW
Electric circuit: 24 V
*Specifications are taken from the GSW360V catalogue (attached).
GSW360V includes:
Standards
The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. Power output guaranteed within 0 to +2% att rated ambient conditions at delivery. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3.
Engine and block
- Optimized cast iron cylinder block with an optimum distribution of forces
- Wet, replaceable cylinder liners
- Crankshaft induction-hardened bearing surfaces and fillets with seven bearings for the moderate load on main and high-end bearings
- Keystone top compression rings for long service life
- Replaceable valve guides and valve seats
- Tapered connecting rods for increased piston lifetime
- Overhead camshaft and four valves per cylinder
Fuel system
- Electronic unit injectors
- Fuel prefilter with water separator and waterin-fuel indicator / alarm
- Fine fuel filter with manual feed pump and fuel pressure switch
Lubrication system
• Rotary displacement oil pump driven by the crankshaft
• Deep front oil sump, Oil filler on top, Oil dipstick, short in front
• Integrated full flow oil cooler, side-mounted
Cooling system
- Efficient cooling with accurate coolant control through a water distribution duct in the cylinder block.
- Reliable sleeve thermostat with minimum pressure drop
- Belt driven coolant pump with high degree of efficiency
