GSW45P

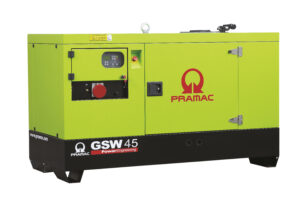

The Pramac GSW45P Three Phase Perkins Diesel Generator delivers world-class industrial backup power production. GSW45P comes with a strong Italian designed Mecc Alte Alternator, digital automatic control panel, and soundproofed zinced steel full weatherproof enclosure.

The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!

Main features of GSW45P

Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 21.50 kVA
Standby power LTP: 17.20 kW
Prime power PRP: 20.10 kVA
Prime power PRP: 16.08 kW
Dry weight (kg): 715
Dimensions (L x W x H / mm): 1800 x 850x 1260
Fuel tank capacity: 68 L

For installation specs and data check out the Pramac specifications manual attached.

*Specifications are taken from the GSW45P catalogue (attached).

Engine specifications for GSW45P

Type of engine: Mecc Alte / ECP 28-M/4
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Max gross power (LTP): 13.5kW
Fuel: Diesel
Efficiency at @ 75%: 87.8%
Class: H
IP Protection: 23

*Specifications are taken from the GSW45P catalogue (attached).

Current data for GSW45P

Battery capacity: 70Ah
Max current: 31.03 A
Circuit breaker: 32 A

GSW45P includes:

Base frame made of welder steel profile, complete with:

• Anti-vibration mounting properly sized
• intergrated support legs

Plastic fuel tank complete with:

• Filler neck
• Air breather (vent pipe)
• external refueling ability
• Oil draining facilities

Canopy

• Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
• Simple handling operationswith central lifting eye
• Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.

Engine complete with

• Battery
• Liquids (no fuel)

Our team at PowerGen provide you with the power to generate solutions for businesses. Call us today on 1300 885 789 to discuss this option for your business.
