The Pramac GSW560V three-phase generator is powered by a Volvo diesel engine and has an output of 546kVA standby. Mounted on a solid welded steel base frame with anti-vibration mountings, the unit can also come in a sound-reducing and weather protected enclosure suitable for outdoor use.
GSW560V
The Pramac GSW560V three-phase generator is powered by a Volvo diesel engine and has an output of 546kVA standby. Mounted on a solid welded steel base frame with anti-vibration mountings, the unit can also come in a sound-reducing and weather protected enclosure suitable for outdoor use.
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW560V
Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 546.00 kVA
Standby power LTP: 436.80 kW
Prime power PRP: 508.47 kVA
Prime power PRP: 406.78 kW
Dry weight (kg): 4695
Dimensions (L x W x H / mm): 4400 x 1560 x 2250
Fuel tank capacity: 700 L
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW560V catalogue (attached).
Alternator specifications for GSW560V
Type of engine: Mecc Alte / ECO40-3S
Poles: 4
Type: brushless
Standard AVR: DER1-A
Voltage tolerance: 1%
Efficiency at @ 75%: 94.8%
Class: H
IP Protection: 23
Engine specifications for GSW560V
Type of engine: Volvo / TAD1641GE
[50Hz] Exhaust emission level: Stage II
Engine cooling system: Water
No. Cylinders: 6
Displacement: 16120 cm3
Aspiration: Turbocharged intercooled
Speed Governor: Electronic
Prime Gross Power (PRP): 441 kW
Max gross power (LTP): 484 kW
Oil capacity: 48 L
Coolant capacity: 93 L
Fuel: Diesel
Specific fuel consumption @ 75% PRP: 196 g/kWh
Specific fuel consumption @ PRP: 199 g/kWh
Starting system: Electric
Starting engine capability: 7 kW
Electric circuit: 24 V
*Specifications are taken from the GSW560V catalogue (attached).
GSW560V includes:
Standards
The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3.
Engine and block
- In-line pump with integrated electromagnetic actuator
- Optimized cast iron cylinder block with optimum distribution of forces
- Wet, replaceable cylinder liners
- Crankshaft induction hardened bearing surfaces and fillets with seven bearings for moderate load on main and high-end bearings
- Keystone top compression rings for long service life
- Replaceable valve guides and valve seats
- Tapered connecting rods for increased piston lifetime
- Over head camshaft and four valves per cylinder
Fuel system
- Electronic unit injectors
- Fuel prefilter with water separator and waterin-fuel indicator / alarm
- Fine fuel filter with manual feed pump and fuel pressure switch
Lubrification System
- Full flow oil cooler
- Full flow disposable spin-on oil filter, for extra high filtration
- Gear type lubricating oil pump, gear driven by the transmission
Cooling System
- Efficient cooling with accurate coolant control through a water distribution duct in the cylinder block.
- Reliable sleeve thermostat with minimum pressure drop
- Belt driven coolant pump with a high degree of efficiency

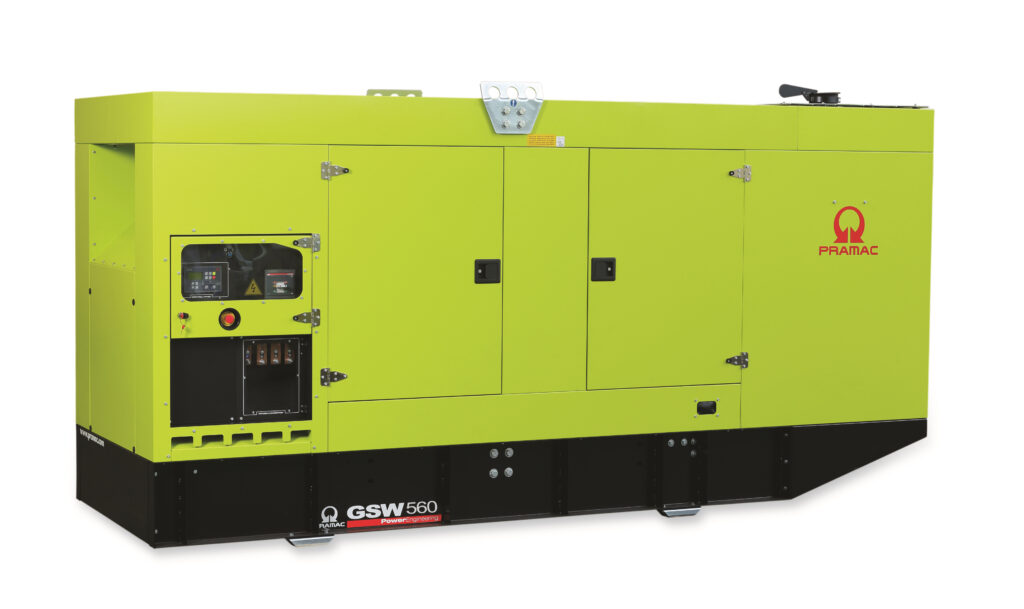

CANOPY:
- Soundproof canopy made up of modular panels, realized with zinced steel as treatment against corrosion and aggressive conditions, properly fixed and sealed allowing a full weatherproof enclosure.
- Easy access to the genset for maintenance purposes thanks to: Wide lateral access doors fixed by stainless steel hinges and provided with plastic lockable handles and internal perforated galvanized steel-sheet; Detachable panels, with screws holes protected by rubber tap.
- Control panel protection door provided with suitable window and lockable handle.
- Lateral air inlet opening properly protected and soundproofed. Exhaust air outlet from the roof, trough wet section protected by proper grid.
- Double lifting points frame structure.
SOUNDPROOF:
• Noise attenuation thanks to soundproofing material
• Efficient residential silencer placed inside the canopy
