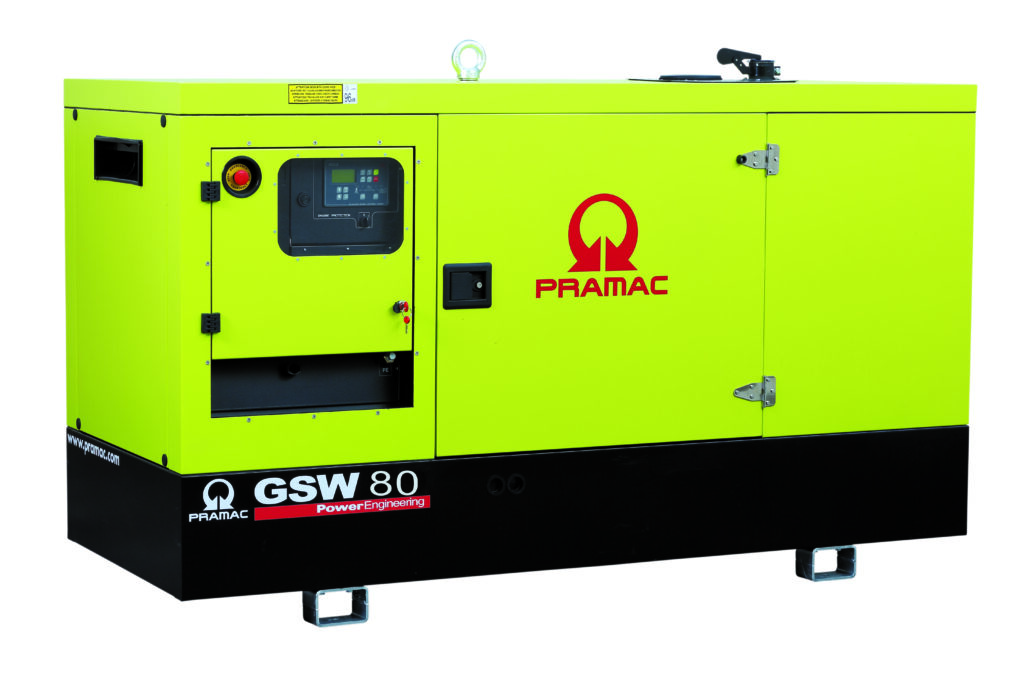

The Pramac GSW80P model produces 83kVA of three-phase power using the world-leading Perkins Diesel engine. In general, the Pramac GSW series are second to none when it comes to stationary generator power for your business.
GSW80P
The Pramac GSW80P model produces 83kVA of three-phase power using the world-leading Perkins Diesel engine. In general, the Pramac GSW series are second to none when it comes to stationary generator power for your business.
For a long time, Generac power systems have been known to be the most reliable and durable out there. These units are perfect for any type of commercial building supply or industrial equipment operation because they can handle large-scale events with ease!
The Pramac GSW80P Italian manufactured alternator includes a digital voltage controller which delivers voltage accuracy to within 1%. A 209-litre fuel tank provides 16 hours of uninterrupted running time at 75% load.
The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of GSW80P
Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 83.00 kVA
Standby power LTP: 66.40 kW
Prime power PRP: 78.00 kVA
Prime power PRP: 62.40 kW
Dry weight (kg): 1,141
Dimensions (L x W x H / mm): 2285 x 920 x 1465
For installation data check out the Pramac specifications manual attached.
*Specifications are taken from the GSW80P catalogue (attached).
Engine specifications for GSW80P
Type of engine: Mecc Alte / ECP 32-3L/4 B
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Efficiency at @ 75%: 90.7%
Specific fuel consumption @ PRP: 248 g/kWh
Class: H
IP Protection: 23
*Specifications are taken from the GSW80P catalogue (attached).
GSW80P includes:
Base frame made of welder steel profile, complete with:
- Anti-vibration mounting properly sized
- Visual fuel level indicator
Plastic fuel tank complete with:
- Filler neck
- Air breather (vent pipe)
- external refueling ability
- Oil draining facilities
Canopy
- Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
- Simple handling operationswith central lifting eye
- Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.
Our team at PowerGen provide you with the power to generate solutions for businesses. Call us today on 1300 885 789 to discuss this option for your business.
