gridtogo™ INGENIUM LX is a portable battery Energy Storage System (ESS) for multiple uses for the product in different situations. This is the ultimate storage system to use for your needs. There are various features like integrated smart Solar PV storage capability which make this model excellent.

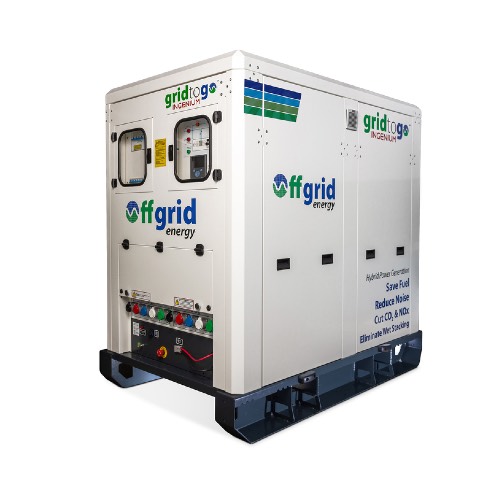

Mobile battery energy storage system with INGENIUM LX
Our portable battery energy storage system
The gridtogo™ INGENIUM LX is a portable battery Energy Storage System (ESS) that incorporates many standard features such as automatic system bypass (125A standard) with options up to 400A meaning connection of up to 300kVA input without need for additional switchgear.
It has an advanced EMS (Energy Management System) with touch sensitive control panel and automatic DC isolator switch with pre-charge feature. Custom configurable input/output arrangement ensures interface to suit your specific needs.
Our knowledgeable PowerGen team with years of experience and expertise can make sure you find the ultimate portable battery energy storage system for your business needs. We have expert advice about sales, installation and maintenance all units in various fields.
Main features of gridtogo™ INGENIUM LX
• 400/230V 50Hz 3Ø output up to 90kVA
• GSM Remote monitoring
• Deep cycle maintenance free li-Ion battery
• Up to 200kWhr stored energy
• Full system DC isolator with pre-charge
• 100A or 200A pass-through capacity (1Ø or 3Ø)
• 125 to 400A system bypass options
• Integrated smart Solar PV storage capability
• Advanced EMS with touch screen control
• V50 Power™ for enhanced DC bus stability
For installation, please have a look at the Offgrid battery energy storage system specifications manual attached.
* *Specifications are taken from the INGENIUM LX catalogue (attached).
Specifications for INGENIUM LX
Output:-
Continuous ac (Inverter): 30, 45, 60, 90kVA
Inverter peak power (5 seconds): 60, 90, 120, 180kW
Pass-through capacity: 100A, 100A, 200A
Input:-
AC1 Maximum input 3∅ (Option): 125A, 125A, 250A
AC2 Maximum input 1∅: 125A 230V
System bypass capacity: 125A, 125A, 250A
Dimensions: –
Length: 2000mm
Height: 1960mm
Width: 1195mm
Ingress protection rating: IP34 Suitable for outdoor use
Standard Finish: Epoxy Powder Coat RAL 9016
Noise Levels: Inaudible above background
Maximum heat rejection 6, 9, 12, 18kW
Standard Battery Options
Battery Type | Gel lead acid OPzV-S | Li-Ion NMC | ||
Battery design life | 2000 cycles to 80% dod, 3000 cycles to 60% dod | 4000 cycles to 80% dod | ||
Nominal Battery Capacity | 1000Ahrs | 1500Ahrs | 1500 Ahrs | 3900 Ahrs |
Useable stored energy | 60kWhrs | 90kWhrs | 75kWhrs | 195kWhrs |
Total unit weight (TBC) | 3500 kg | 3500 kg | 1720 kg | 2390 kg |
*Specifications are taken from the gridtogo™ INGENIUM LX catalogue (attached). For more information please download there the catalogue here.
Battery energy storage system from INGENIUM LX
Instruments, controls & connections:
- Input connection (AC1 & AC2)
- (AC2)
- Output Connections AC
- Cascade ready
- System status control panel
- Battery condition
- Battery main isolator
- Input & Output MCB’s
- Programmable gen auto-start signal
Optional features includes:
- Integrated MPPT Solar PV charge controlle
- High capacity system bypass
- Single to three phase conversion
- Harsh environment pack
- Free air cooling pack
