We have off grid energy Australia solutions for businesses such as INGENIUM MX 10 OPzV is a universal Energy Storage System (ESS) ideally suited to a range of applications. This unit delivers reliable power in the most cost effective and environmentally sensitive way. It is a great choice for your home or business needs.

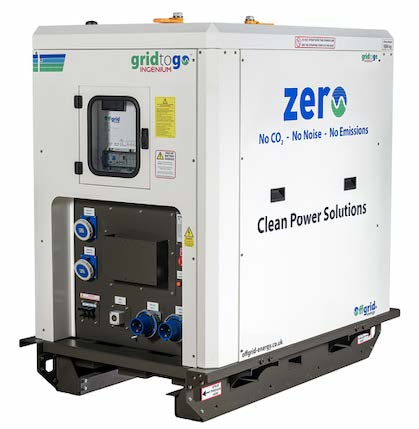

INGENIUM MX 10 OPzV – Off grid energy Australia solution
Off grid energy Australia solutions for businesses.
We have a few off grid energy Australia solutions such as the gridtogo INGENIUM 10 OPzV, unit is fitted with an OPzV-S high cyclic capacity, maintenance free lead acid battery. It is brings down costs and is environmentally sound. It comes in alternative battery options are available that include Lead Carbon and Li-Ion NMC offering different properties and to suit specific budgets.
Our off grid energy Australia team can help discuss your specific needs and requirements with expert advice and experience to establish the most appropriate specifications.
The PowerGen team has great knowledge about installation and maintenance so that all fields are covered in-depth with safety knowing you are dealing with the right people for the job.
Main features of INGENIUM MX 10 OPzV
• 230V 50Hz 1Ø output, 10kVA
• GSM Remote monitoring
• Deep cycle maintenance free OPzV-S battery
• 30kWh stored energy
• Full system DC isolator with pre-charge
• 63A pass-through capacity
• 63A Auto full system bypass
• Integrated smart Solar PV storage capability
• Advanced EMS with smart device control
* *Specifications are taken from the gridtogo INGENIUM MX 10 OPzV catalogue (attached).
For installation, please see more data via the Off grid energy Australia unit specifications manual attached.
Specifications for INGENIUM MX 10 OPzV
INPUT:- | |
AC Input | 187-265Vac 1ph |
AC1 Maximum input 1∅ | 63A, IEC 60309 |
AC2 Maximum input 1∅ | 63A, IEC 60309 |
System bypass capacity | 63A |
Solar DC Input | 3 x 245V strings, 15A |
Earthing Provison | M10 Stud |
OUTPUT:- | |
Output Voltage | 230Vac @50Hz |
Continuous AC (Inverter) | 10kVA (8kW) |
Power Factor | 0.8Φ |
Inverter peak power (2 seconds) | 15kW |
Pass-through capacity | 63A |
IEC(BS)60939 1Ø Outlets (30mA RCBO) | 2 x 32A |
Generator Autostart | NAC3FCA Neutrik Plug |
OPTIONAL FEATURES:- | |
High Capacity System Bypass | ● BPS |
Integrated MPPT Solar PV Change Controller | ● PV |
Trailer Mounted System | ● TMS |
INSTRUMENTS, CONTROLS & CONNECTIONS:- | |
Charging Status | ✓ |
Battery Monitor Display | ✓ |
Programmable gen auto-start signal | ✓ |
Cascade ready | ✓ |
Output MCB’s & RCD’s | ✓ |
Colour Display Screen (CCGX) | ✓ |
DIMENSIONS:- | |
Length | 1600mm |
Height | 1802mm |
Width | 1020mm |
MISCELLANEOUS:- | |
DC Voltage Range | 19.6-28.2V |
Maximum heat rejection | 1kW |
Noise Level | ≤49dB(A) |
Standard Finish | Epoxy Powder Coat, RAL 9016 |
Ingress Protection Rating | IP34 |
Operating Temperature Range | -20 to 50ºC |
Lifting Points | 2No. Eyes, Fork Pockets |
Standard Battery Options
| Battery Tape | Gel lead acid OPzV-S |
| Battery design life | 2000 cycles to 80% DoD, 3000 cycles to 60% DoD |
| Nominal Battery Capacity | 2000 Ahr’s |
| Useable stored energy | 30 kWh’s |
| Total unit weight | 1,850 kg |
*This information about the specifications is taken from the gridtogo INGENIUM MX 10 OPzV catalogue (attached).
Off grid energy Australia solutions for companies and building professionals are provided by our team at PowerGen. Call us today on 1300 885 789 to discuss this possible option for your business.
