Our Off grid energy Sydney team will help provide reliable power in the most cost effective and environmentally sensitive way. The Grid to Go INGENIUM LX 45-90 Li has a range of uses from building site to charging your electric car. This unit provides off grid energy solutions to Sydney and across Australia.

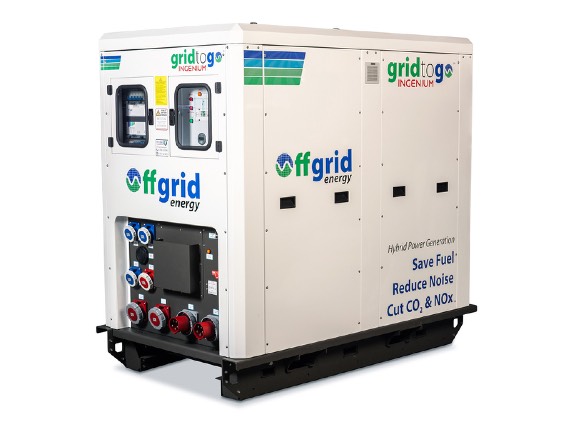

INGENIUM LX 45-90 Li – Off grid energy Sydney system
Be independent with off grid energy Sydney solutions.
Grid to Go INGENIUM LX 45-90 Li is the perfect method for an off grid energy options. This unit is a universal Energy Storage System (ESS) that provides off grid energy Sydney solutions. The new Grid to Go INGENIUM offers optional features that include automatic system bypass with options that range from 125 to 400A meaning connection of up to 300kVA input without need for additional switchgear.
The list of features are plenty such as has an advanced EMS (Energy Management System) with touch sensitive control panel and automatic DC isolator switch with pre-charge feature. Even a custom configurable input/output arrangement ensures interface to suit your specific needs.
Our team at PowerGen love creating off grid energy Sydney solutions for local business. It is the best way to storage energy. We have years of experience and expertise! Our expert advice about sales, installation and maintenance are second to none so that all parts are covered in-depth.
Main features of INGENIUM LX 45-90 Li
• 400/230V 50Hz 3Ø 45kVA
• GSM Remote monitoring
• Deep cycle maintenance free li-Ion battery
• 90kWh stored energy
• Full system DC isolator with pre-charge
• 100A pass-through capacity
• Advanced EMS with touch screen control
• V50 Power™ for enhanced DC bus stability
* *Specifications are taken from the INGENIUM LX 45-90 Li catalogue (attached).
Specifications for Grid to Go INGENIUM LX 45-90 Li
Output:-
Continuous ac (Inverter): 45kVA
Inverter peak power (5 seconds): 90kW
Pass-through capacity: 100A
Input:-
VAC1 Maximum input 3∅ (Option): 125A
AC2 Maximum input 1∅: 125A 230V
System bypass capacity: 125A
Dimensions: –
Length: 2000mm
Height: 1960mm
Width: 1195mm
Ingress protection rating: IP34 Suitable for outdoor use
Standard Finish: Epoxy Powder Coat RAL 9016
Noise Levels: Inaudible above background
Maximum heat rejection: 9kW
For more information about the installation process, please look at data check out the off grid energy Sydney units specifications manual attached.
Standard Battery Options
| Battery Tape | Li-Ion NMC |
| Battery design life | 4000 cycles to 80% dod |
| Nominal Battery Capacity | 2400 Ahs |
| Useable stored energy | 90kWhrs |
| Total unit weight (TBC) | 2250 kg |
*Our off grid energy Sydney team have specifications are taken from the INGENIUM LX 45-90 Li catalogue (attached).
Grid to Go INGENIUM 45 OPzV includes:
Instruments, controls & connections:
- Input connection (AC1 & AC2) – IEC 60309 or hardwire stud
- (AC2) – 3Ø 400V IEC 60309 or hardwire stud
- Output Connections AC – 3Ø 400V IEC 60309 or hardwire stud
- Battery condition
- System status control panel
- Battery main isolator
- Input & Output MCB’s
- Programmable gen auto-start signal
Optional features includes:
- Integrated MPPT Solar PV charge controller
- System AC bypass up to 630A (in lieu of standard)
- Single to three phase conversion
- Harsh environment pack
- Free air cooling pack
Call us today on 1300 885 789 to discuss with our team at Powergen about off grid energy Sydney solutions for businesses.
