The DF20000 is a wonder in the world of power equipment, with its fog cannon and water power. The PowerGen team are experienced in providing expert advice about sales, installation and maintenance and are here to ensure you find the perfect power source for your industry or business needs.

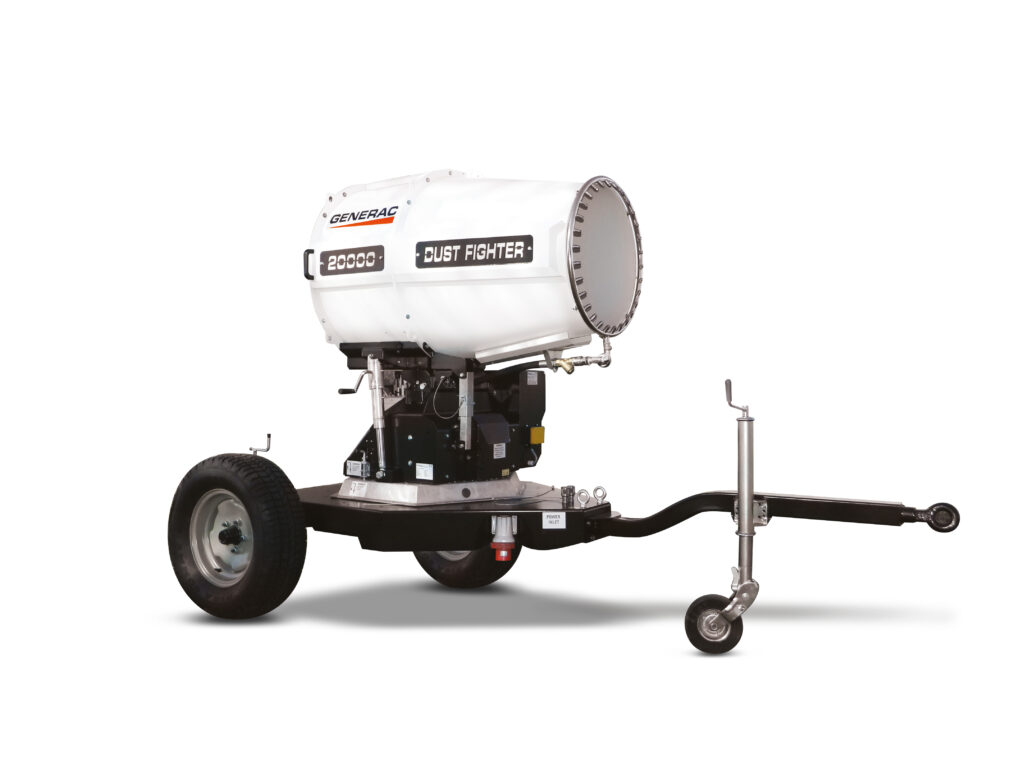

DF20000
The DF20000 is a wonder in the world of power equipment, with its fog cannon and water power. The PowerGen team are experienced in providing expert advice about sales, installation and maintenance and are here to ensure you find the perfect power source for your industry or business needs.
The DF20000 is a powerful solution for small to medium-sized working areas.
Specifications for the DF20000
Electrical engine power (fan – kW): 22
Smallest generator required: 50 kW
Coverage (without wind): 50 – 60 m
Electrical connection: Inlet plug three-phase – 63 A
Water connection: UNI 45
Minimum inlet pressure: 1,0 bar
Water consumption: 70 L/min
Water inlet filter: 180 µ
Work angle: 335°
Tilting: 0 – 40°
Dimensions with tow bar and wheels (L x W x H): 3300 x 1830 x 2180 mm
Dry weight: 850 kg
*Specifications are taken from the DF20000 catalogue (attached).
Design Features – Standard equipment
- Integrated control panel
- Phase inverter
- Booster pump with peripheral impeller
- Flowmeter for pump protection
- Pressure gauge for outlet pressure reading
- Stainless steel crown with nozzles
- Water drain system
- Equipped with 2 wheels, tow bar and forklift pockets
- 2 height adjustable stabilizers
With these features, using your Generac DF20000 on a worksite will be a breeze.
Additional features
The DF20000 extras include:
- Electric tilting
- Available on homologated road trailer
- Automatic oscillation system
- Remote control to switch on/off the fan, the pump and the electrical rotation, complete with macro-sequential controls
- Dosing pump for chemical additives
Our team at PowerGen provide you with the power to generate solutions for businesses. Call us today on 1300 885 789 to discuss this option for your business.
