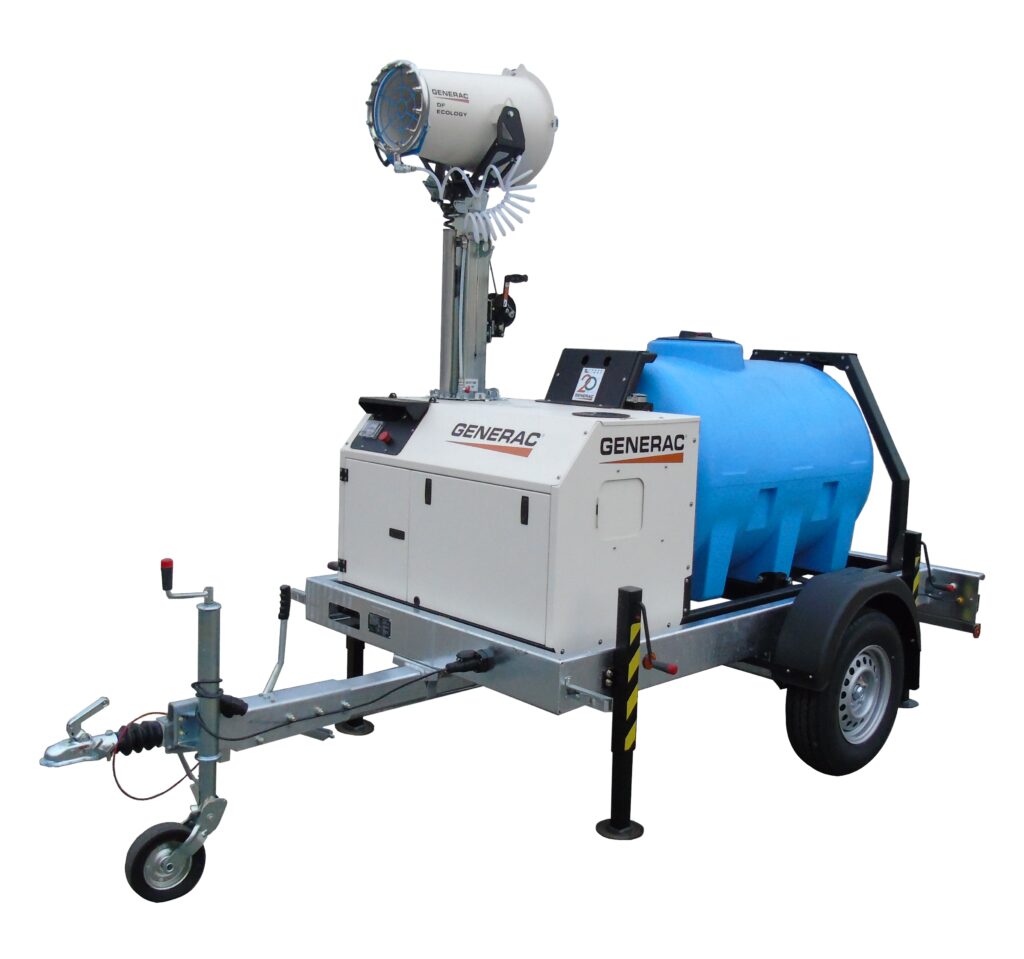

The DF 3000 MPT (Mobile Power Tank) is a wonder in the world of power equipment, with its fog cannon and water tank. It can even be hooked up to an optional road trailer for those who travel often!
The DF3000MPT (Mobile Power Tank) is a wonder in the world of power equipment, with its fog cannon and water tank. Installed on a manual telescopic mast, a plastic water tank, a power generating set and an optional road trailer. The PowerGen team are experienced in providing expert advice about sales, installation and maintenance and are here to ensure you find the perfect power source for your industry or business needs.
The DF 3000 MPT (Mobile Power Tank) is a perfect solution for small to medium-sized working areas where water and energy are not available.
Specifications for the DF3000MPT
Electrical engine power (fan – kW): 2,2
Coverage (without wind – m): 20
Generang set with diesel engine: 3,7 kW 230 V – Yanmar L70N
Fuel tank capacity (L): 18
Water tank capacity (L): 1,000
Water consumption (l/min): 6,25
Lifting system: Manual
Manual tilting system: -30/+10°
Running time (min): 160
Water inlet filter (µ): 170
Dim. on base (L x W x H min/max): 2374 x 1210 x 1990/3920mm
Dim. on road trailer* (L x W x H min/max): 3780 x 2015 x 2540/4470mm
Dry weight on base (kg): 490/840
Working angle: 335°
Trailers available: Road trailer
*Specifications are taken from the DF3000MPT catalogue (attached).
Design Features – Standard equipment
- Telescopic vertical mast (max. height: 4m)
- 1000 litres water tank
- 3,7 kW – 230 V integrated generating set
- Integrated control panel
- Stainless steel crown with nozzles
- Nebulizer cone foldable for transport
- Telescopic mast with double crank winch
- Water Supply and Main Electricity network connections
- High pressure washer connection
- Water draining system
- Structure on base with forklift pockets for easy handling
With these features, using your Generac DF3000MPT on a worksite will be a breeze.
Digital controller and nozzel crown
The DF3000MPT control panel is integrated to include:
- Command switches,
- Circuit breakers and
- An emergency stop button.
The DF3000MPT nozzle crown is integrated to include:
- Fog cannon with stainless steel crown equipped with
- 12 spray nozzles for water nebulizing.
