GBW22P

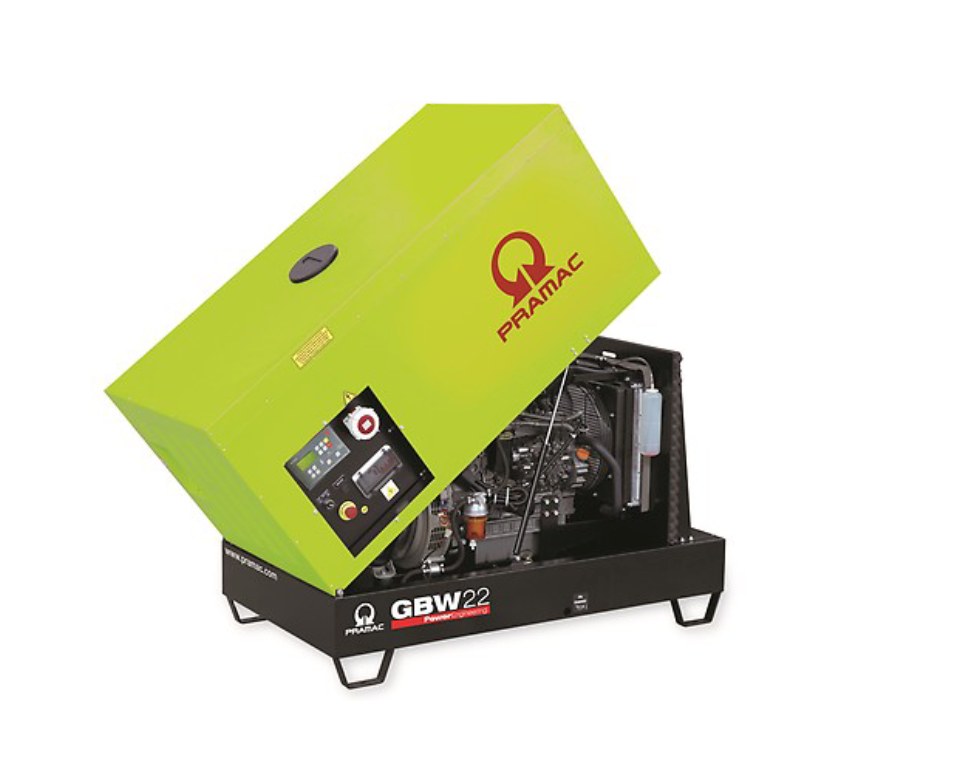

The Pramac GBW22P three Phase Diesel Generator produces world-class industrial backup power performance. GBW22P comes with a strong Italian designed Mecc Alte Alternator, digital automatic control panel, and soundproofed steel full weatherproof case.

The PowerGen team is here to make sure you find the perfect power source for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!

Main features of GBW22P

Frequency: 50Hz
Voltage: 400V
Power factor: cos 0.8
Phase and connection: 3
Standby power LTP: 21.5 kVA
Standby power LTP: 17.20 kW
Prime power PRP: 20.10 kVA
Prime power PRP: 16.08 kW
Dry weight (kg): 586
Dimensions (L x W x H / mm): 1645 x 870 x 1072
Fuel tank capacity: 51 L

For installation data check out the Pramac specifications manual attached.

*Specifications are taken from the GBW22P catalogue (attached).

Engine specifications for GBW22P

Type of engine: Mecc Alte / ECP 28-M/4
[50Hz] Exhaust emission level: Stage IIIA
Engine cooling system: Water
Poles: 4
Type: brushless
Voltage regulation system: Electronic
Standard AVR: DSR
Voltage tolerance: 1%
Max gross power (LTP): 13.5kW
Fuel: Diesel
Efficiency at @ 75%: 87.8%
Class: H
IP Protection: 23

*Specifications are taken from the GBW22P catalogue (attached).

GBW22P includes:

Mechanical structureRobust mechanical structure permits easy access to the connections and components during routine maintenance check-ups.

Insulation / ImpregnationThe insulation system is class ‘H’.All wound components are impregnated with materials and processes designedspecifically to provide the high build required for static windings and the highmechanical strength required for rotating components.

Base frame made of welder steel profile, complete with:

• Anti-vibration mounting properly sized
• Visual fuel level indicator
• intergrated support legs

Plastic fuel tank complete with:

• Filler neck
• Air breather (vent pipe)
• external refueling ability
• Oil draining facilities

Canopy

• Single piece hinged soundproof canopy equipped with pneumatic arms and handlesto lift up the canopy allowing easy access to the genset for maintenance purposes.
• Simple handling operationswith central lifting eye
• Soundproof! Noise attenuation thanks to soundproofing material (polyurethane foam) and efficientresidential silencer placed inside the canopy.
