The gridtogo™ INGENIUM MX30-30 Li is a universal mobile Energy Storage System that is solid steel unit plus delivers cost effective reliable power for a various range of applications. The unit comes with an advanced EMS with smart device control panel.
INGENIUM MX30-30 Li – Mobile energy storage
PowerGen Australia supplier of mobile energy storage
The gridtogo™ INGENIUM MX mobile energy storage can be fitted with alternative types and capacity of maintenance battery that include OPzV, Lead Carbon or Li-Ion, each offering different properties and to suit specific budgets.
Please discuss your needs with a technical advisor to establish the most appropriate specification for your requirements.
The PowerGen team is here to make sure you find the perfect mobile energy storage for your business needs. With years of experience and expertise, we can provide expert advice about sales, installation and maintenance so that all fields are covered in-depth with ease!
Main features of gridtogo™ INGENIUM MX30-30 Li
• 400/230V 50Hz 3Ø output, 30kVA
• GSM Remote monitoring
• Maintenance free battery
• 30kWh stored energy
• Full system DC isolator with pre-charge
• 100A pass-through capacity
• Integrated smart Solar PV storage capability

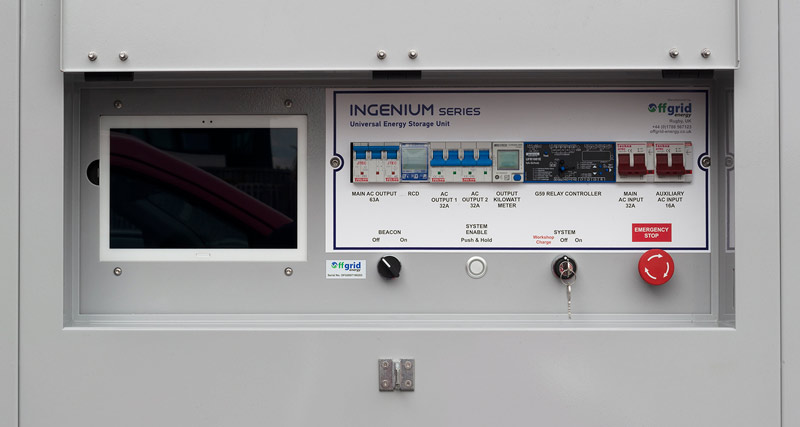

• Advanced EMS with smart device control
• V50 Power™ for enhanced DC bus stability
* *Specifications are taken from the gridtogo™ INGENIUM MX30-30 Li catalogue (attached).
Mobile energy storage specifications of INGENIUM MX30-30 Li
Input (400/230V 50Hz 3Ø):- | |
AC Maximum input 3Ø or 1Ø | 100A |
System bypass capacity | 100A |
Option for second AC input | 100A |
Output (400/230V 50Hz 3Ø):- | |
Continuous ac (Inverter) | 30kVA |
Inverter peak power (5 seconds) | 60kW |
Pass-through capacity | 100A |
DIMENSIONS: | |
Length | 1500mm |
Height | 1550mm |
Width | 1000mm |
Ingress protection rating | IP34 Suitable for outdoor use |
Standard Finish | Epoxy Powder Coat RAL 9016 |
Noise Levels | Inaudible above background |
Maximum heat rejection | 750kW |
INSTRUMENTS, CONTROLS & CONNECTIONS:- | |
Input connection | IEC 60309 or hardwire stud |
Optional AC2 input | IEC 60309 or hardwire stud |
Output Connections AC | 3Ø 400V IEC 60309 or hardwire stud |
Cascade ready | ✓ |
System status control panel | ✓ |
Battery condition | ✓ |
Battery main isolator | ✓ |
Output MCB’s | ✓ |
Programmable gen auto-start signal | ✓ |
OPTIONAL FEATURES:- | |
Integrated MPPT Solar PV charge controller | ● PV |
High capacity system bypass | ● BPS |
Single to three phase conversion | ● PC |
Harsh environment pack | ● HE |
Free air cooling pack | ● FA |
For installation, data check out the Offgrid specifications manual attached.
Standard battery options
Battery Tape | Lead Carbon | Li-Ion NMC |
Battery design life | 3000 to 80% dod, 4000 to 60% dod | 2000 to 80% dod, 4000 to 60% dod |
Nominal Battery Capacity | 500Ahrs @C10 | 600Ahrs |
Useable stored energy | 25kWhs | 30kWhs |
Total unit weight | 1550 kg | 1150 kg |
Operating temperature range | -20℃ +55℃ | -20℃ +55℃ |
*For more information on the mobile storage unit, please see the gridtogo™ INGENIUM MX30-30 Li catalogue (attached).
Our mobile energy storage team at PowerGen provide multiple portable energy storage solutions for businesses of any size. We love helping bring the perfect option for what best fits. Call us today on 1300 885 789 to discuss this option for your business.
