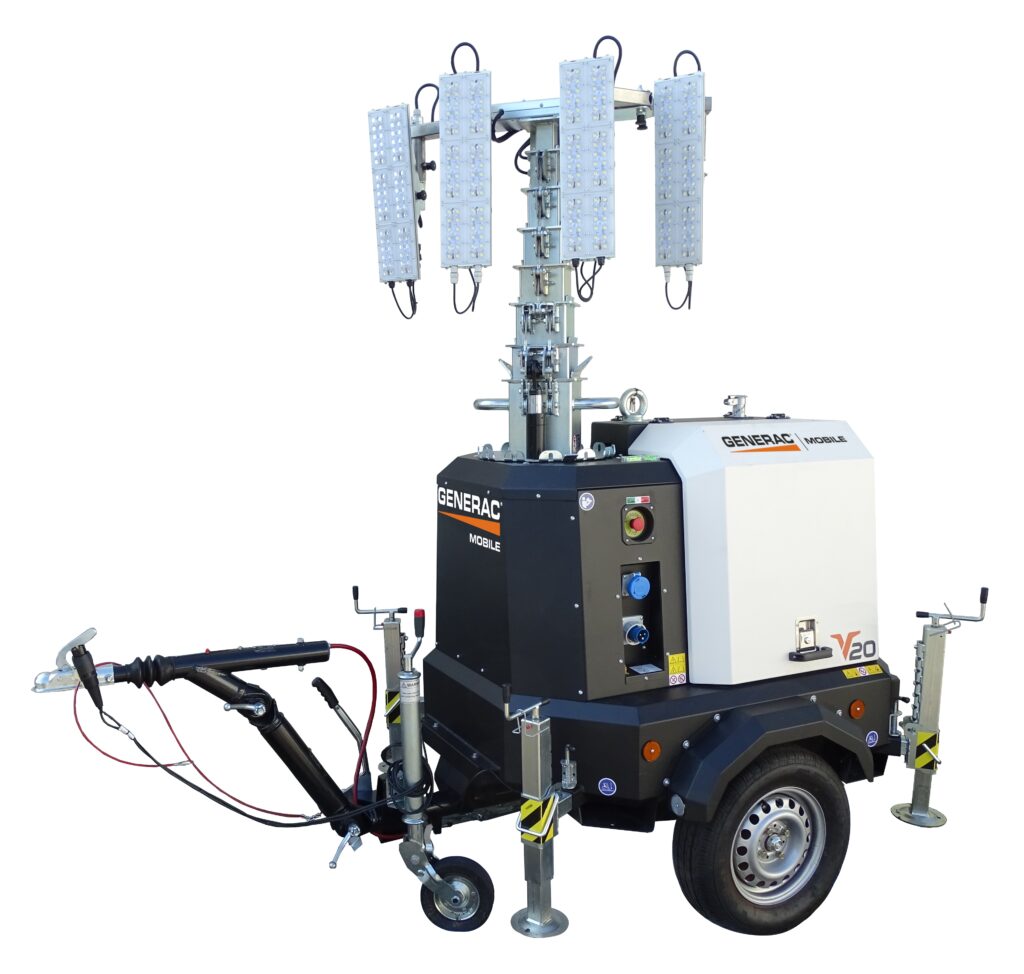

V20 Hyper

We are the experts in energy and now stock the portable V20 Hyper lighting tower by GENERAC. Using OMNIA LEDTechnology, the special Hyper version is equipped with floodlights that are installed on a fully adjustable bracket allowing the operator to point the floodlights in any direction and provide a total of 360 illuminations. Note: Floodlights are also available with an anti-glare system.

The PowerGen team are experienced in providing expert advice about sales, installation and maintenance and are here to ensure you find the perfect power source for your industry or business needs.

Specifications for the V20 Hyper Y

Lifting System: Hydraulic
Min. dim. (cm): 2200 x 1400 x 2440
Max. dim. (cm): 2200 x 1850 x 8500
Dry weight (kg): 980
Lamps power (W): 4 x 320
Lamps Type: LED
Certified illuminated area (m²): 4,200
Total lumen (Lm): 184,000
Mast rotation: 340°
Certified wind speed resistance (km/h): 110
Tank capacity (litres): 110
Engine model: Yanmar 2TNV-70, 2 cyl. @1500/1800 rpm
Engine cooling: Water
Alternator (kVA/V/Hz): 5/220/50 – 5/240/60
Outlet socket (kVA/V/Hz): 2/220/50 – 2/240/60
Inlet plug (A/V/Hz): 16/220/50 – 16/240/60
Running time (h): 167
Avg. sound pressure level (dB(A) @ 7m): 58
Trailers available: Road trailer or site-tow trailer

Specifications for the V20 Hyper P

Lifting System: Hydraulic
Min. dim. (cm): 2200 x 1400 x 2440
Max. dim. (cm): 2200 x 1850 x 8500
Dry weight (kg): 980
Lamps power (W): 4 x 320
Lamps Type: LED
Certified illuminated area (m²): 4,200
Total lumen (Lm): 184,000
Mast rotation: 340°
Certified wind speed resistance (km/h): 110
Tank capacity (litres): 110
Engine model: Perkins 402D-05, 2 cyl. @1500/1800 rpm
Engine cooling: Water
Alternator (kVA/V/Hz): 5/220/50 – 5/240/60
Outlet socket (kVA/V/Hz): 2/220/50 – 2/240/60
Inlet plug (A/V/Hz): 16/220/50 – 16/240/60
Running time (h): 167
Avg. sound pressure level (dB(A) @ 7m): 58
Trailers available: Road trailer or site-tow trailer

*Specifications are taken from V20 Hyper catalogue (attached).

Design Features

• Long running time
• Digital controller
• V20 Hyper lamps with *anti-glare shells

*You have the ability to attach anti-glare shells.

With these features, using your Generac lighting tower on a worksite will be a breeze.

Digital controller and long running time

The V20 Hyper Y lighting tower digital controller was specifically designed exclusively for the Generac lighting towers. Every function of the machine can be controlled and managed from a single digital panel. With this, the V20’s fuel-saving features such as the small engine and LED lamps, this model can run up to 167 hours without refuelling!
